AUTOMATIC TRANSMISSION ON-BOARD DIAGNOSTIC FUNCTION [RC4A-EL]


id050200811109

DTC Reading Procedure

1. Perform the necessary vehicle preparation and visual inspection.

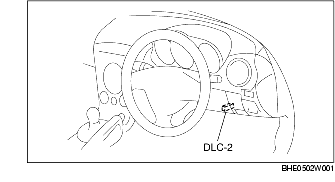

2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located at the right side of the dashboard.

3. Retrieve DTCs using the WDS or equivalent.
