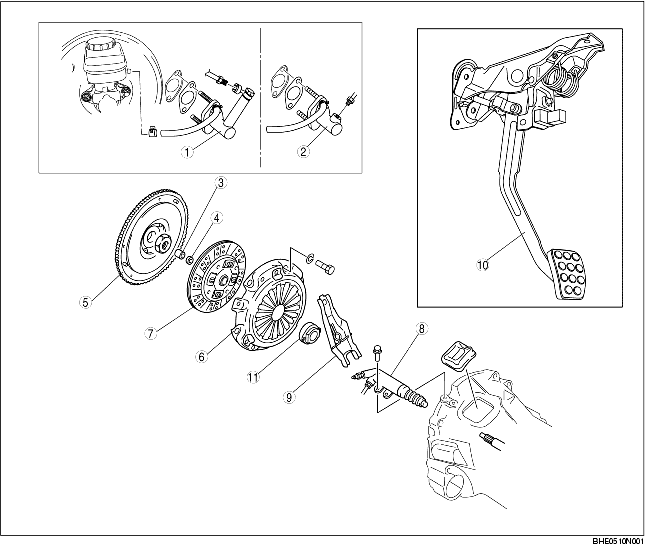

CLUTCH STRUCTURAL VIEW
id051000100500
1
Clutch master cylinder (L.H.D.)
2
Clutch master cylinder (R.H.D.)
3
Pilot bearing
4
Oil seal
5
Flywheel
6
Clutch cover
7
Clutch disc
8
Clutch release cylinder
9
Clutch release fork
10
Clutch pedal
11
Clutch release collar
