CLUTCH PEDAL REMOVAL/INSTALLATION

id051000801200

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

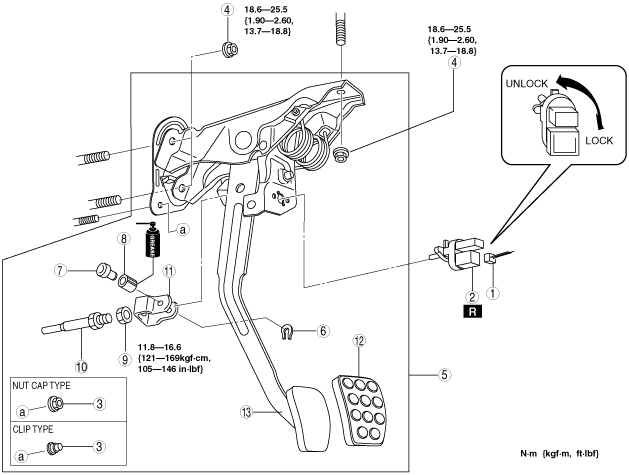

ar8wzw00001459

1
Clutch switch connector
2
Clutch switch
3
Nut cap / Clip
(See Nut Cap Removal Note.)
4
Nut
5
Clutch pedal component
(See Clutch Pedal Component Installation Note.)
6
Retaining ring
7
Joint pin
8
Bush
9
Nut
10
Push rod
11
Fork
12
Pedal pad
13
Clutch pedal


Nut Cap Removal Note

1.  Dispose of the nut cap after removal.

Note
•  When installing the clutch pedal, install the clip instead of the nut cap.

Clutch Pedal Component Installation Note

Caution
•  Always verify the tightening order for the clutch pedal installation nuts before performing the procedure. If there is a malfunction in the tightening order, it could result in bracket deformation.

1.  Install the clutch pedal component, and then temporarily tighten the nut A.

ar8wzw00001460

2.  Insert the clip completely so that the clutch pedal adheres to the installation surface and there are no gaps between them.

3.  Tighten the nuts B (2).

ar8wzw00001461

Tightening torque
18.6—25.5 N·m {1.90—2.60 kgf·m, 13.7—18.8 ft·lbf}

4.  Tighten the nut A.

Tightening torque
18.6—25.5 N·m {1.90—2.60 kgf·m, 13.7—18.8 ft·lbf}

5.  After installing the clutch pedal component, inspect/adjust the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT.)
