• A cam-type reverse lockout mechanism is adopted to ensure reliability.
• A cam, which is installed to the shift guide plate in the shift control case, restricts the selector movement to prevent the driver from misshifting.
• When shifting into reverse, by shifting the selector back into the neutral position once and then shifting to the 5th/reverse direction, the selector pushes the cam outward to release the shifting restriction, and shifting into reverse is made possible.

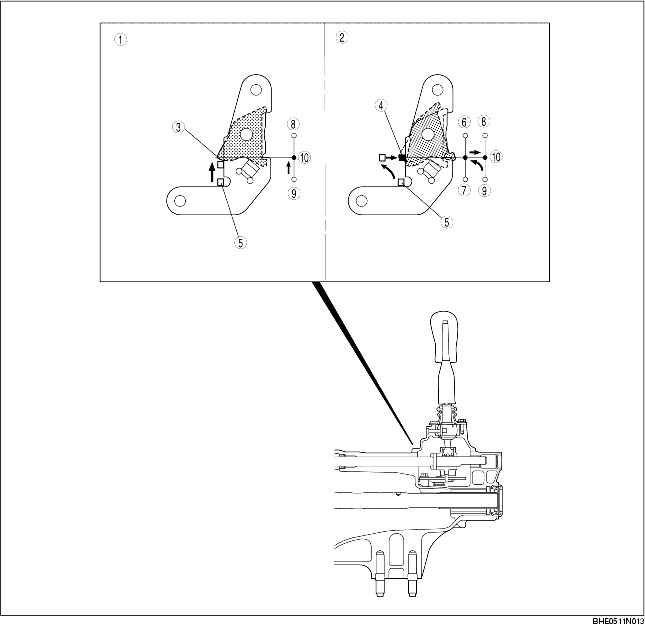

Shift guide component operation
|
1
|
Shifting directly from 5th into reverse
|
|
2
|
Shifting into reverse after shifting into neutral
|
|
3
|
Restricts movement
|
|
4
|
Restriction released
|
|
5
|
Selector
|
|
6
|
4th
|
|
7
|
3rd
|
|
8
|
Reverse
|
|
9
|
5th
|
|
10
|
Neutral
|
