NEUTRAL SWITCH REMOVAL/INSTALLATION [R15M-D]


id051104247100

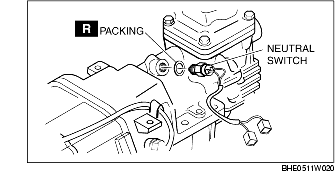

1. Remove the neutral switch.

2. Install the neutral switch (with a new packing) to the transmission case.

Tightening torque
25-34 N·m
{2.5-3.5 kgf·m, 18-25 ft·lbf}
