• A triple synchronizer mechanism is used for the first, second and third gears to improve synchromesh capacity.
• The triple synchronizer mechanism consists of a synchronizer ring, middle ring, and inner ring.
• The gear side inner surface of the inner ring can also be used as a friction surface in the triple synchronizer mechanism. This provides a stronger synchronization force compared to the double cone synchronizer mechanism and reduces operation force and meshing time.

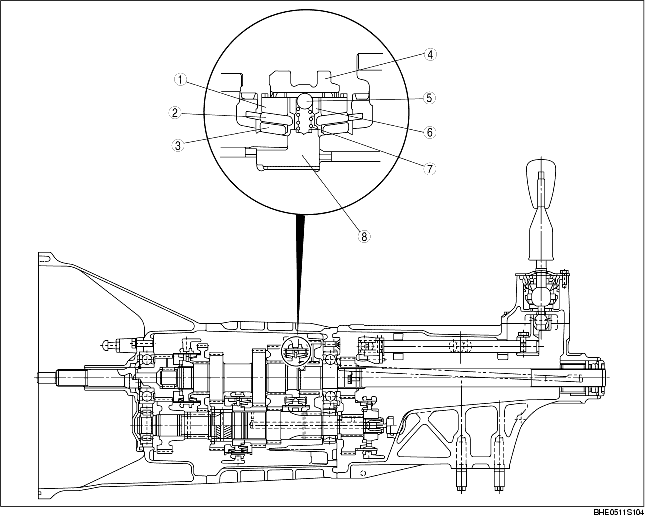

Structural view
|
1
|
Synchronizer ring
|
|
2
|
Middle ring
|
|
3
|
Inner ring
|
|
4
|
Hub sleeve
|
|
5
|
Ball
|
|
6
|
Synchronizer key
|
|
7
|
Spring
|
|
8
|
Clutch hub
|
