• The TCM selects the TCC schedule according to the gear selected by the transmission. Fifty Hz (20 ms cycle) on/off signals are relayed from the TCC schedule, VSS and throttle opening angle to the duty cycle TCC solenoid valve to control the TCC.

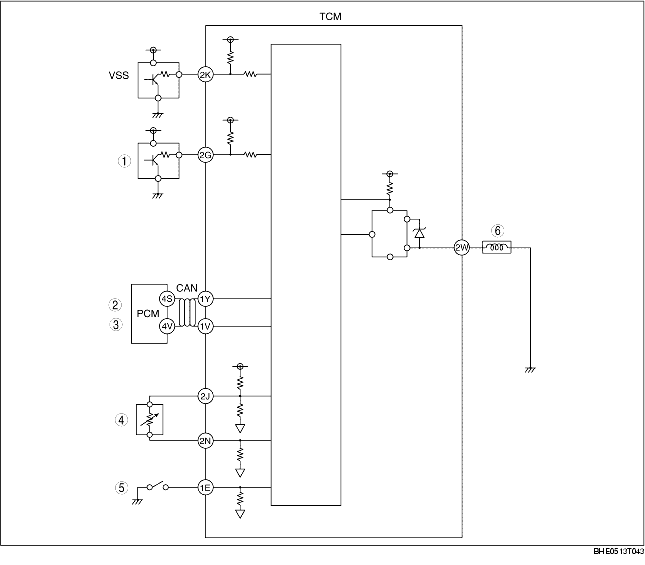

System diagram
|
1
|
Turbine sensor
|
|
2
|
Throttle opening signal
|
|
3
|
Engine peed signal
|
|
4
|
TFT sensor
|
|
5
|
M range switch
|
|
6
|
TCC solenoid
|
