• The TCM stops driving the TCC solenoid (OFF) when TCC release is determined.
• When the TCM determines TCC engagement, the TCM gradually increases the duty ratio energizing the TCC solenoid, and gradually drains the oil pressure in the torque converter F chamber.
• The TCC piston slowly presses against the converter cover, and the TCC engages smoothly.
|

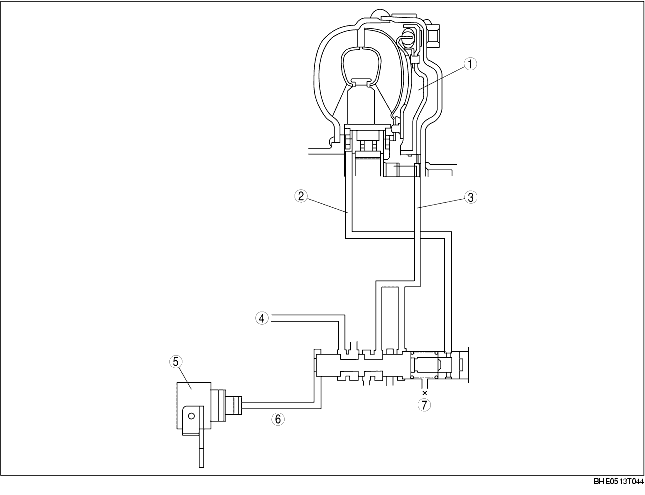

1
|
Torque converter F chamber
|
|
2
|
Torque converter pressure
|
|
3
|
Torque converter pressure (drain)
|
|
4
|
Oil cooler
|
|
5
|
TCC solenoid
|
|
6
|
Pilot pressure
|
|
7
|
TCC control valve
|
• The TCC is inhibited when any of the following conditions are met.
