TCM REMOVAL/INSTALLATION


id051300250800

1. Remove the engine cover.

2. Remove the battery cover.

3. Disconnect the negative battery cable.

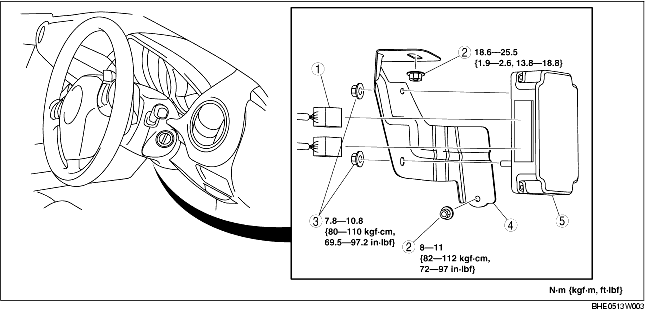

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

1
TCM connector
2
Nut
3
Nut
4
Bracket
5
TCM
