STEP
|
INSPECTION
|
ACTION
|
|
1
|

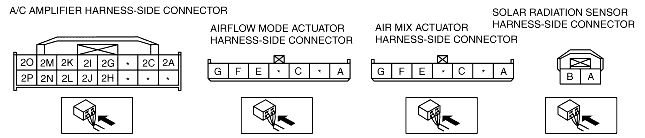

• Disconnect the A/C amplifier connector (16-pin) and the airflow mode actuator connector.
• Is there an open circuit in the wiring harness between A/C amplifier connector (16-pin) terminal 2O and airflow mode actuator connector terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
2
|
• Is there a short circuit to ground in the wiring harness between A/C amplifier connector (16-pin) terminal 2O and airflow mode actuator connector terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
3
|
• Is there a short circuit to ground in the wiring harness between A/C amplifier connector (16-pin) terminal 2O and air mix actuator connector terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
Go to the next step.
|
|
4
|
• Is there a short circuit to ground in the wiring harness between A/C amplifier connector (16-pin) terminal 2O and solar radiation sensor connector terminal A?
|
Yes
|
Repair the wiring harness.
|
|
No
|
The system is normal at present. (Clear the past malfunction from memory.)
|
|
|
