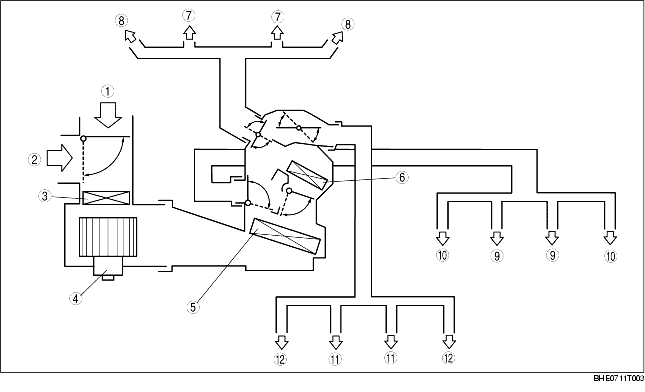

VENTILATION SYSTEM
|
1
|
Fresh
|
|
2
|
Recirculate
|
|
3
|
Air filter
|
|
4
|
Blower motor
|
|
5
|
Evaporator
|
|
6
|
Heater core
|
|
7
|
Defroster
|
|
8
|
Side demister
|
|
9
|
Center vent
|
|
10
|
Side vent
|
|
11
|
Front heat
|
|
12
|
Rear heat
|

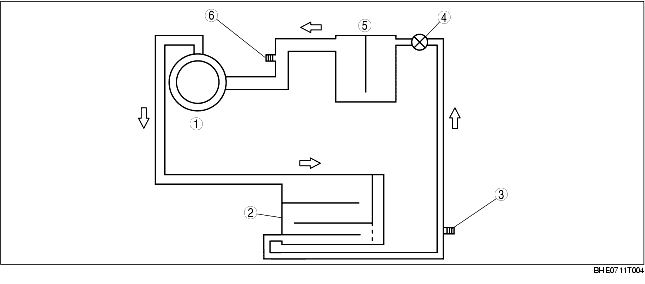

REFRIGERANT SYSTEM
|
1
|
A/C compressor
|
|
2
|
Condenser
|
|
3
|
High-pressure charging valve
|
|
4
|
Expansion valve
|
|
5
|
Evaporator
|
|
6
|
Low-pressure charging valve
|
