A/C UNIT CONSTRUCTION/OPERATION
id071100100400

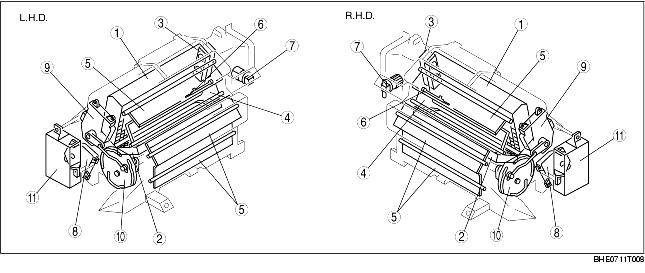

Construction
• An A/C unit with integrated cooling and heater units has been adopted.
|
1
|
Evaporator
|
|
2
|
Heater core
|
|
3
|
Expansion valve
|
|
4
|
Air mix door
|
|
5
|
Airflow mode door
|
|
6
|
Evaporator temperature sensor
|
|
7
|
Power transistor (full-auto air conditioner), resistor (manual air conditioner)
|
|
8
|
Air mix actuator
|
|
9
|
Air flow mode actuator
|
|
10
|
Airflow mode main link
|
|
11
|
A/C amplifier
|

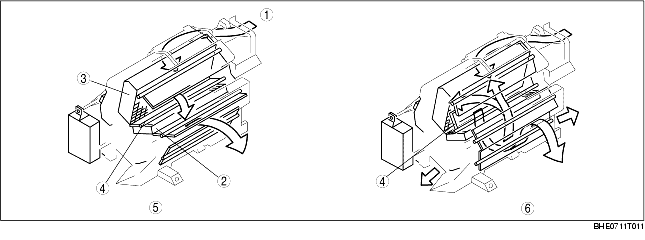

Air Mix Door Operation
• The air mix actuator, installed in the A/C unit, controls HOT or COLD positions, depending on the position of the temperature control dial. As a result, the airflow distribution changes, and the airflow temperature is controlled.
|
1
|
Airflow from blower unit
|
|
2
|
Heater core
|
|
3
|
Evaporator
|
|
4
|
Air mix door
|
|
5
|
COLD
|
|
6
|
HOT
|

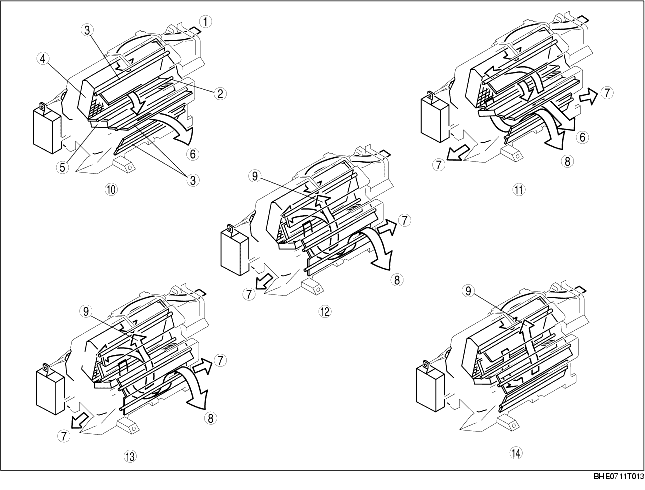

Airflow Mode Door Operation
• The airflow mode actuator move to the VENT, BI-LEVEL, HEAT, HEAT/DEF, or DEFROSTER position, depending on the position of the airflow mode selector switch. As a result, the airflow mode changes.
|
1
|
Airflow from blower unit
|
|
2
|
Air mix door
|
|
3
|
Airflow mode door
|
|
4
|
Evaporator
|
|
5
|
Heater core
|
|
6
|
To center vent and side vent
|
|
7
|
To front heat
|
|
8
|
To rear heat
|
|
9
|
To defroster and side demister
|
|
10
|
VENT
|
|
11
|
BI-LEVEL
|
|
12
|
HEAT
|
|
13
|
HEAT/DEF
|
|
14
|
DEFROSTER
|
Airflow Distribution
L.H.D.
|
AIRFLOW MODE
|
AIRFLOW RATE (%)
|
|
VENT
|
HEAT
|
DEFROSTER
|
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
FRONT
|
REAR
|
FRONT
|
REAR
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
|
VENT
|
25
|
25
|
25
|
25
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
BI-LEVEL
|
12.5
|
12.5
|
12.5
|
12.5
|
16.25
|
8.75
|
16.25
|
8.75
|
-
|
-
|
-
|
-
|
|
HEAT
|
7.5
|
-
|
-
|
7.5
|
21.125
|
11.375
|
21.125
|
11.375
|
2.4
|
7.6
|
7.6
|
2.4
|
|
HEAT/DEF
|
7.5
|
-
|
-
|
7.5
|
14.625
|
7.875
|
14.625
|
7.875
|
4.8
|
15.2
|
15.2
|
4.8
|
|
DEFROSTER
|
10
|
-
|
-
|
10
|
-
|
-
|
-
|
-
|
9.6
|
30.4
|
30.4
|
9.6
|
R.H.D.
|
AIRFLOW MODE
|
AIRFLOW RATE (%)
|
|
VENT
|
HEAT
|
DEFROSTER
|
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
DRIVER-SIDE
|
PASSENGER-SIDE
|
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
FRONT
|
REAR
|
FRONT
|
REAR
|
SIDE
|
CENTER
|
CENTER
|
SIDE
|
|
VENT
|
25
|
25
|
25
|
25
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
BI-LEVEL
|
12.5
|
12.5
|
12.5
|
12.5
|
16.25
|
8.75
|
16.25
|
8.75
|
-
|
-
|
-
|
-
|
|
HEAT
|
-
|
-
|
-
|
-
|
26.975
|
14.525
|
26.975
|
14.525
|
2.04
|
6.46
|
6.46
|
2.04
|
|
HEAT/DEF
|
-
|
-
|
-
|
-
|
16.25
|
8.75
|
16.25
|
8.75
|
6
|
19
|
19
|
6
|
|
DEFROSTER
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
12
|
38
|
38
|
12
|
