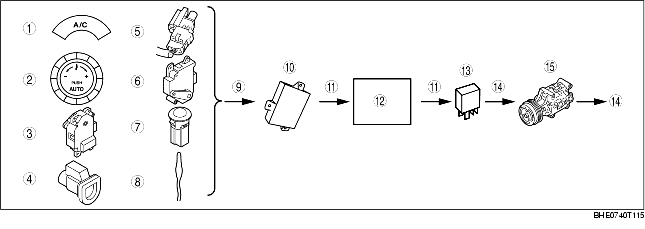

A/C COMPRESSOR CONTROL SYSTEM DIAGRAM
id074000103100
|
1
|
A/C switch
|
|
2
|
Set temperature
|
|
3
|
Intake mode
|
|
4
|
Cabin temperature
|
|
5
|
Ambient temperature
|
|
6
|
Airflow mode
|
|
7
|
Solar radiation amount
|
|
8
|
Evaporator temperature
|
|
9
|
Signal
|
|
10
|
A/C amplifier
|
|
11
|
Output
|
|
12
|
PCM
|
|
13
|
A/C relay
|
|
14
|
Operation
|
|
15
|
Magnetic clutch
|
