POWER TRANSISTOR REMOVAL/INSTALLATION


id074000318600

1. Disconnect the negative battery cable.

2. Remove the glove compartment.

3. Remove in the order indicated in the table.

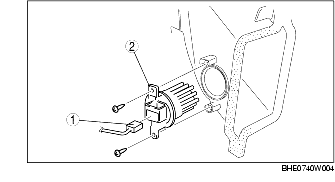

1
Power transistor connector
2
Power transistor

4. Install in the reverse order of removal.
