FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000405200
1. To disassemble the front bumper, remove the following parts:
-
(1) Front fog lights (Vehicles with the front fog lights)(See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
-
(2) Headlight cleaner hose (Vehicles with the headlight cleaner)(See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)
-
(3) Headlight cleaner nozzles (Vehicles with the headlight cleaner)(See HEADLIGHT CLEANER NOZZLE REMOVAL.)(SeeHEADLIGHT CLEANER NOZZLE INSTALLATION.)
-
(4) Headlight cleaner actuator (Vehicles with the headlight cleaner)(See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)

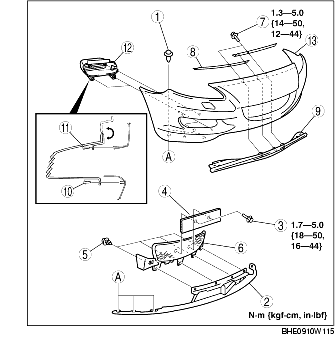

2. Disassemble in the order indicated in the table.
|
1
|
Screw A
|
|
2
|
Airdam skirt
|
|
3
|
Bolt A
|
|
4
|
License plate holder
|
|
5
|
Fastener
|
|
6
|
Front bumper mesh
|
|
7
|
Bolt B
|
|
8
|
Set plate
|
|
9
|
Front bumper retainer No.1
|
|
10
|
Screw B
|
|
11
|
Screw C
|
|
12
|
Front fog light hole cover
|
|
13
|
Front bumper fascia
|
3. Assemble in the reverse order of disassembly.
