FRONT SEAT DISASSEMBLY/ASSEMBLY
id091300800300
-
Warning
-
• Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read the service warnings before handling the front seat (with a side air bag). (See SERVICE WARNINGS.)
1. For vehicles with side air bags, remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

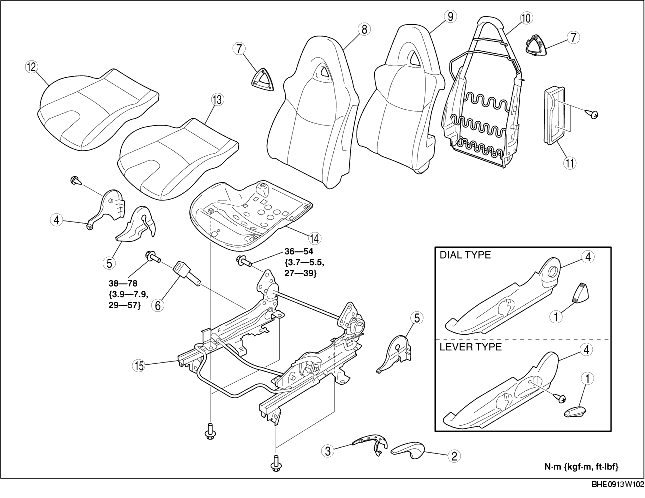

Manual Seat (Driver's Seat)
|
1
|
Recliner dial (dial type) /Recliner lever (lever type)
|
|
2
|
Outer lift lever
|
|
3
|
Inner lift lever
|
|
4
|
Side cover
|
|
5
|
Reverse cover
|
|
6
|
Front buckle
|
|
7
|
Cover
|
|
8
|
Seat back trim
|
|
9
|
Seat back pad
|
|
10
|
Seat back frame
|
|
11
|
Side air bag cover
|
|
12
|
Seat cushion trim
|
|
13
|
Seat cushion pad
|
|
14
|
Seat cushion frame
|
|
15
|
Slide adjuster
|

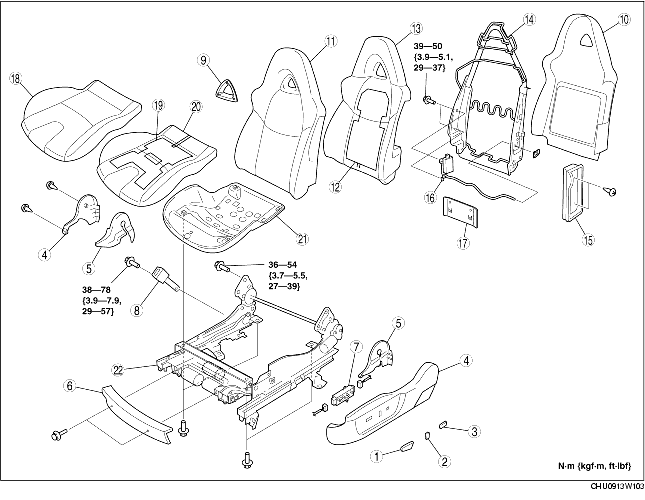

Power Seat (Driver's Seat)
|
1
|
Slider switch knob
|
|
2
|
Recliner switch knob
|
|
3
|
Lumbar support switch knob
|
|
4
|
Side cover
|
|
5
|
Reverse cover
|
|
6
|
Front cover
|
|
7
|
Power seat switch
|
|
8
|
Front buckle
|
|
9
|
Cover
|
|
10
|
Seat back cover
|
|
11
|
Seat back trim
|
|
12
|
Seat warmer unit
|
|
13
|
Seat back pad
|
|
14
|
Seat back frame
|
|
15
|
Side air bag cover
|
|
16
|
Lumbar support motor
|
|
17
|
Seat back hardboard
|
|
18
|
Seat cushion trim
|
|
19
|
Seat warmer unit
|
|
20
|
Seat cushion pad
|
|
21
|
Seat cushion frame
|
|
22
|
Slide adjuster
|

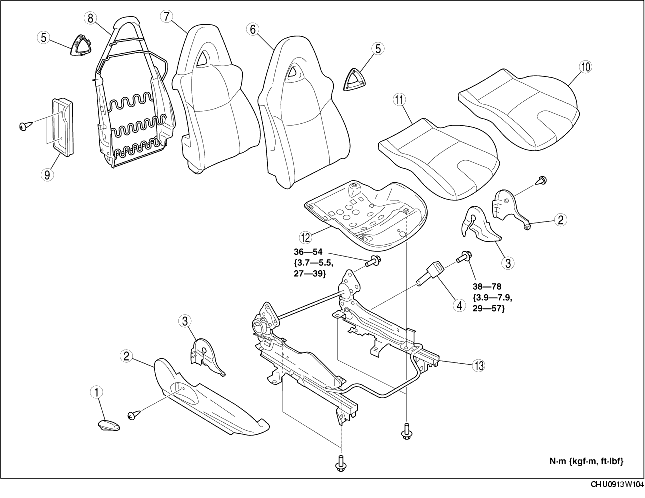

Manual Seat (Passenger's Seat)
|
1
|
Recliner lever
|
|
2
|
Side cover
|
|
3
|
Reverse cover
|
|
4
|
Front buckle
|
|
5
|
Cover
|
|
6
|
Seat back trim
|
|
7
|
Seat back pad
|
|
8
|
Seat back frame
|
|
9
|
Side air bag cover
|
|
10
|
Seat cushion trim
|
|
11
|
Seat cushion pad
|
|
12
|
Seat cushion frame
|
|
13
|
Slide adjuster
|
