REAR SEAT REMOVAL/INSTALLATION


id091300800400

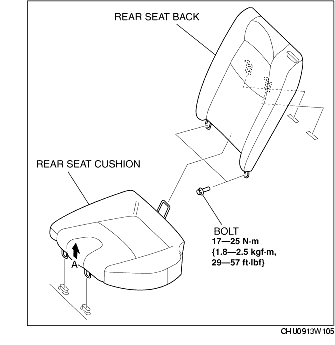

1. Lift the point A in the direction of the arrow, then remove the rear seat cushion.

2. Remove the bolts, then remove the rear seat back.

3. Install in the reverse order of removal.
