SLIDE MOTOR INSPECTION
id091300800900
1. Disconnect the slide motor connector.

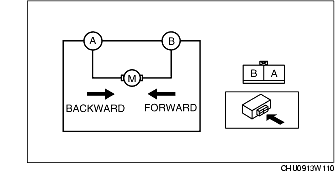

2. Connect battery positive voltage to slide motor terminal A or B, then verify that the slide motor operate as shown in the table.
-
• If the slide motor does not operate as indicated in the table, replace the slide motor.
|
Motor operation
|
Connection
|
|
B+
|
GND
|
|
Forward
|
B
|
A
|
|
Backward
|
A
|
B
|
