LUMBAR SUPPORT MOTOR INSPECTION
id091300804300
1. Disconnect the lumbar support motor connector.

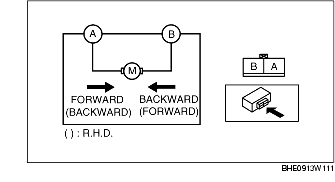

2. Connect battery positive voltage to lumbar support motor terminal A or B, then verify that the lumbar support motor operate as shown in the table.
-
• If the lumbar support motor do not operate as indicated in the table, replace the lumbar support motor.
|
Motor operation
|
Connection
|
|
B+
|
GND
|
|
Forward
|
A (B)
|
B (A)
|
|
Backward
|
B (A)
|
A (B)
|
-
( ) :
R.H.D.
