KEYLESS ENTRY SYSTEM WIRING DIAGRAM [WITH RETRACTABLE KEY TYPE]

id0914005215a7

Applied VIN (assumed):

• JMZ SE1736*#—136001

• JMZ SE17N2*#—136001

• JMZ SE17360#—136001

• JMZ SE17N20#—136001

• JM0 FE103100 —104076

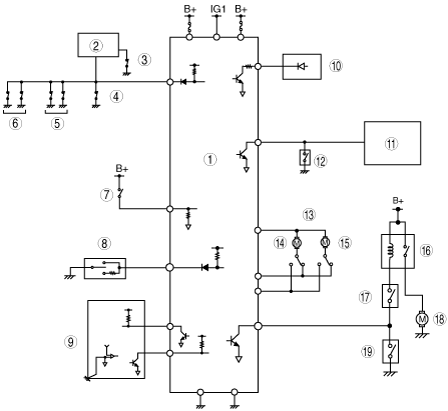

bhe0914t305

1

Keyless unit

2

Instrument cluster

3

Door switch (driver's side)

4

Door switch (passenger's side)

5

Rear door lower latch switch

6

Rear door upper latch switch

7

Key reminder switch

8

Door key cylinder

9

Keyless receiver

10

Instrument cluster (security light)

11

Flasher unit

12

Hazard warning switch

13

Front door lock actuator

14

Driver's side

15

Passenger's side

16

Trunk lid opener relay

17

Trunk lid opener cancel switch

18

Trunk lid opener

19

Trunk lid opener switch

Applied VIN (assumed):

• JMZ SE1736*# 136002—

• JMZ SE17N2*# 136002—

• JMZ SE17360# 136002—

• JMZ SE17N20# 136002—

• JM0 FE103100 104077—

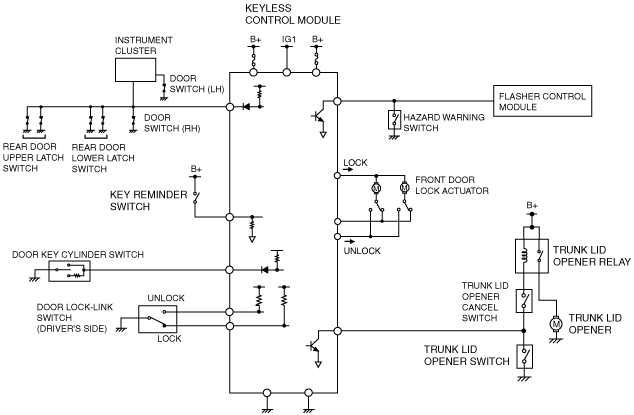

dhe914bt9002

1	Keyless unit
2	Instrument cluster
3	Door switch (driver's side)
4	Door switch (passenger's side)
5	Rear door lower latch switch
6	Rear door upper latch switch
7	Key reminder switch
8	Door key cylinder
9	Keyless receiver
10	Instrument cluster (security light)
11	Flasher unit
12	Hazard warning switch
13	Front door lock actuator
14	Driver's side
15	Passenger's side
16	Trunk lid opener relay
17	Trunk lid opener cancel switch
18	Trunk lid opener
19	Trunk lid opener switch
