TRANSMITTER BATTERY REPLACEMENT

Normal Type

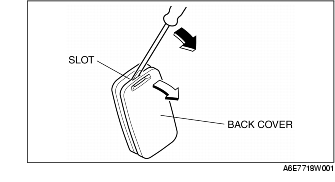

1. Insert a small screwdriver into the slot and gently pry open the transmitter.

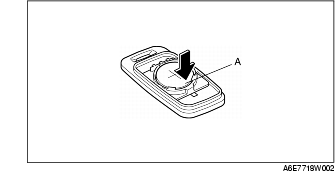

2. Press the portion of the battery indicated by A and remove the battery.

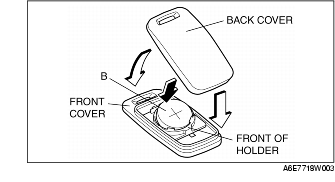

3. Install a new battery (CR2025) into the front portion of the holder with the positive pole (+) facing up. Press on the B portion of the battery to set the battery.

4. Align the front and back covers and snap the transmitter shut.

Lithium CR2025 × 1

Note

• The batteries will last about 2 years when used 10 times a day.

Retractable Key Type

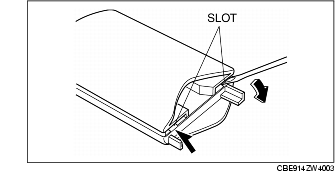

1. Insert a small screwdriver into the slot and push the tab to remove the key from the transmitter.

2. Insert a small screwdriver into the slot and gently pry open the transmitter.

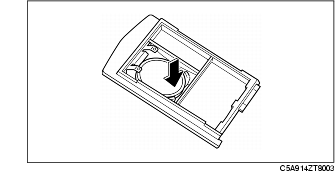

3. Remove the battery.

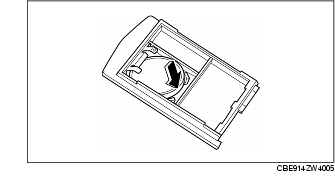

4. Put in the new battery (CR1620) with the positive pole (+) facing down.

5. Align the front and back covers and snap the transmitter shut.

Lithium CR1620 × 1

Note

• The batteries will last about 2 years when used 10 times a day.

6. Install the key to the transmitter.
