KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]

id0914008063b1

1. When replacing the keyless control module, perform the following procedure:

• KEYLESS CONTROL MODULE CONFIGURATION (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS SYSTEM].)

2. Disconnect the negative battery cable.

3. Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

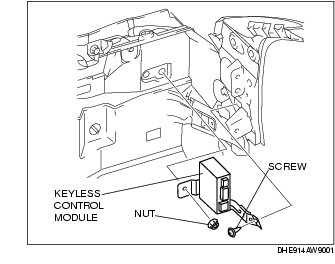

4. Remove the nut and screw.

5. Remove the connector clip installed to the bracket by shifting the keyless control module downward.

6. Disconnect the keyless control module connector.

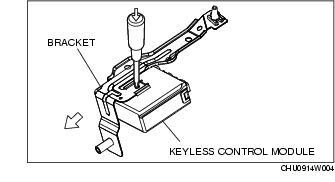

7. Push the stopper with a small screwdriver and remove the bracket in the direction shown by the arrow.

8. Install in the reverse order of removal.
