DOOR LOCK CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS SYSTEM]


id0914008069b1

1. Disconnect the negative battery cable.

2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

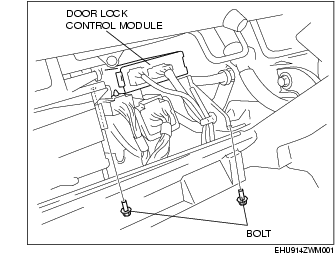

3. Remove the bolts.

4. Remove the connector clip installed to the bracket by shifting the door lock control module downward.

5. Disconnect the keyless unit connector.

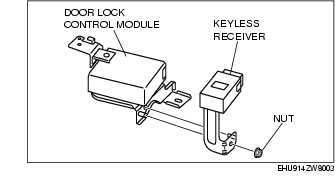

6. Remove the nut, then remove the keyless receiver form the door lock control module.

7. Install in the reverse order of removal.
