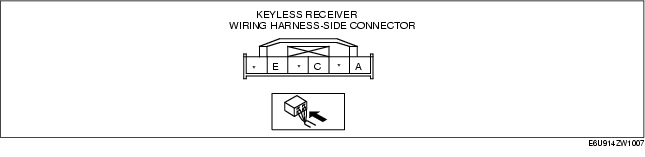

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).
• If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)" and related wiring harnesses.
Terminal Voltage Table (Reference)
Terminal
Signal name
Connected to
Measured condition
Voltage (V)/Continuity
Inspection item(s)
A
Power supply
• BCM
Under any condition
B+
• BCM
• Related wiring harnesses
C
Data
• BCM
• Under any condition: Inspect the wiring harness between the keyless receiver and BCM terminal 7I for continuity.
Continuity detected
• BCM
• Related wiring harnesses
E
GND
Body ground
Under any condition: Inspect for continuity to ground.
