DASHBOARD DISASSEMBLY/ASSEMBLY

id091700453600

1.  Remove the following parts:

(1)  Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

(2)  Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

(3)  Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION)

(4)  Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of disassembly.

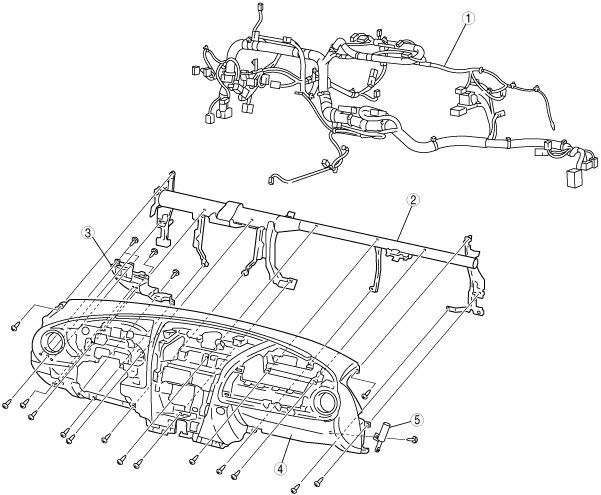

chu0917wk03

1	Dashboard wiring harness
2	Dashboard member
3	Panel
4	Dashboard
5	Glove compartment damper
