OUTER SCUFF PLATE REMOVAL/INSTALLATION


id091700809300

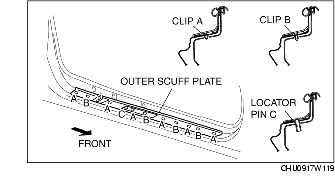

1. Pull the outer scuff plate upward, detach clips A, B, and locator pin C from the body, and then remove the outer scuff plate.

2. Install in the reverse order of removal.
