BACK-UP LIGHT SWITCH INSPECTION

id091800463900

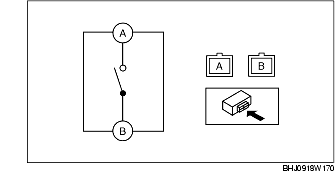

1. Disconnect the back-up light switch connector.

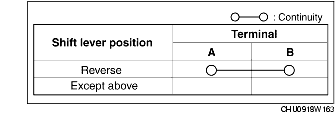

2. Verify that the continuity between the back-up light switch terminals is as indicated in the table.

• If not as indicated in the table, replace the back-up light switch.
