1. Disconnect the negative battery cable.
2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION.)
3. Remove the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

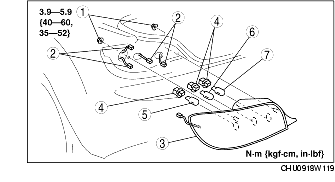

4. Remove in the order indicated in the table.
|
1
|
Nut
|
|
2
|
Connector
|
|
3
|
Rear combination light
|
|
4
|
Socket
|
|
5
|
Rear turn light bulb
|
|
6
|
Back-up light bulb
|
|
7
|
Stop/taillight bulb
|
5. Install in the reverse order of removal.
