HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

1. Disconnect the negative battery cable.

2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

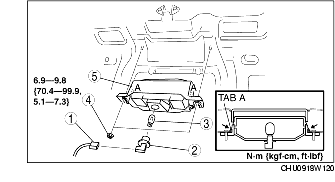

3. Remove in the order indicated in the table.

1
Connector
2
Socket
3
High-mount brake light bulb
4
Nut
5
High-mount brake light

4. Install in the reverse order of removal.
