IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION


id091800802400

1. Disconnect the negative battery cable.

2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

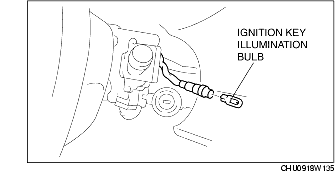

3. Remove the ignition key illumination bulb.

4. Install in the reverse order of removal.
