AUDIO CONTROL SWITCH CONSTRUCTION/OPERATION
id092000100600
Construction

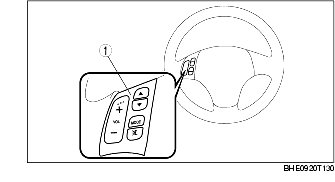

• The audio control switch is located on the steering wheel.
1
Audio control switch

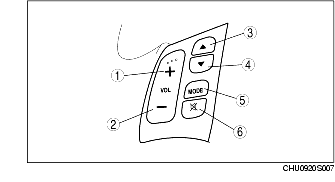

Operation
No.
Button (component)
Function
1
Volume button (+)
Volume up
2
Volume button (-)
Volume down
3
AUTO scan button
Select the radio station
AUTO track button
Track change
4
Preset button
Select the preset button
5
Mode button
Select the audio mode
(AM→FM1→FM2→Cassette tape/MD→CD/CD changer)
6
Mute button
Mute
