LCD UNIT CONSTRUCTION
id092000102100

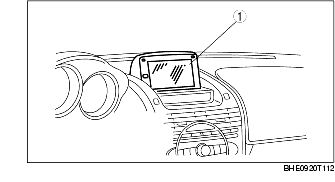

Structural View
• Located at the center of the dashboard.
Terminal Layout and Signal
|
Terminal
|
Signal
|
|
24-pin connector
|
|
|
1A
|
Video (B)
|
|
1B
|
Video (G)
|
|
1C
|
Video (composite sync)
|
|
1D
|
Video (R)
|
|
1E
|
Video GND
|
|
1F
|
Video GND
|
|
1G
|
Shield GND
|
|
1H
|
-
|
|
1I
|
Monitor serial output
|
|
1J
|
-
|
|
1K
|
Monitor serial input
|
|
1L
|
-
|
|
1M
|
Control illumination
|
|
1N
|
-
|
|
1O
|
ACC
|
|
1P
|
GND
|
|
1Q
|
B+
|
|
1R
|
Parking brake signal
|
|
1S
|
Shield GND
|
|
1T
|
R range signal
|
|
1U
|
UART2
|
|
1V
|
Illumination
|
|
1W
|
UART1
|
|
1X
|
-
|
|
Terminal
|
Signal
|
|
6-pin connector
|
|
|
2A
|
Power
|
|
2B
|
GND
|
|
2C
|
Illumination
|
|
2D
|
-
|
|
2E
|
Shield GND
|
|
2F
|
-
|
