REAR SPEAKER INSPECTION

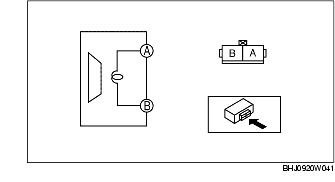

1. Verify the resistance between rear speaker terminals.

• If the resistance is not within the specification, replace the rear speaker.

Resistance

Standard: 4 ohms

BOSE: 2 ohms

2. Connect a 1.5 V battery to the rear door speaker and verify that noise is sound from the rear door speaker.

• If no sound is output, replace the rear door speaker.
