CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY

id092000804500

Caution

• Before disassembling the center panel module, spread a cloth on the floor to put the disassembled parts on. This protects the surface of the panel from scratches or dirt.

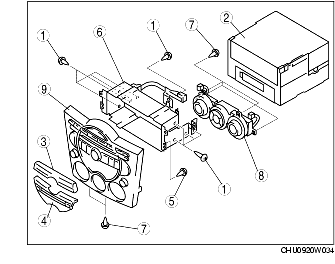

1. Disassemble in the order indicated in the table.


1	Screw A
2	Audio unit
3	Cover (upper module)
4	Cover (lower module)
5	Screw B
6	Bracket
7	Screw C
8	Climate control unit
9	Center panel

2. Assemble in the reverse order of disassembly.
