CENTER SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(2) Console (See CONSOLE REMOVAL/INSTALLATION.)

(3) Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION.)

(4) Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

(5) LCD unit (See LCD UNIT REMOVAL/INSTALLATION.)

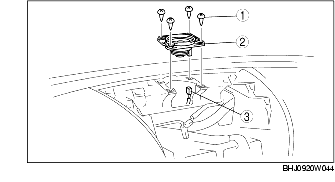

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
