AUDIOPILOT MICROPHONE REMOVAL/INSTALLATION

id092000806300

Note
• "AudioPilot" is a registered trademark of Bose Corporation.

1. Disconnect the negative battery cable.

2. Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

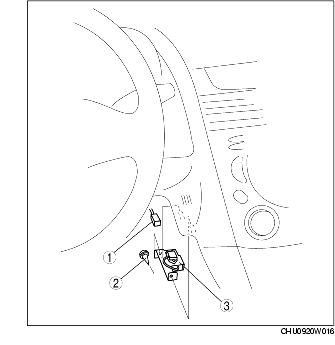

3. Remove in the order indicated in the table.

1
Connector
2
Screw
3
AudioPilot microphone

4. Install in the reverse order of removal.
