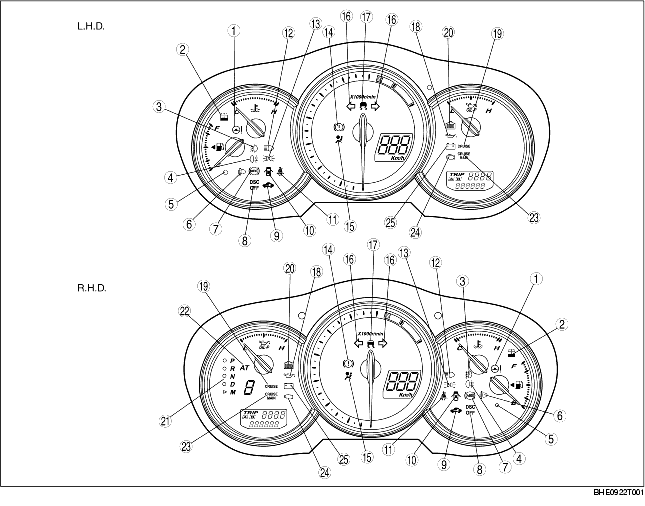

No.
|
Warning and indicator light
|
Input signal source
|
CAN system
|
Note
|
|
1
|
EPS warning light
|
EPS control module
|
X
|
-
|
|
2
|
Washer fluid-level warning light
|
Washer fluid-level sensor
|
-
|
With washer fluid-level warning system
|
|
3
|
Front fog indicator light
|
Front fog light switch
|
-
|
-
|
|
4
|
Rear fog indicator light
|
Rear fog light switch
|
-
|
-
|
|
5
|
Fuel-level warning light
|
Fuel gauge sender unit
|
-
|
-
|
|
6
|
Headlight auto leveling warning light
|
Auto leveling control module
|
-
|
With discharge headlight
|
|
7
|
ABS warning light
|
DSC HU/CM
|
X
|
-
|
|
8
|
DSC OFF light
|
DSC HU/CM
|
X
|
-
|
|
9
|
Security light
|
Keyless unit
|
-
|
-
|
|
10
|
Door ajar warning light
|
Door switch
|
-
|
-
|
|
11
|
Seat belt warning light
|
Buckle switch
|
-
|
-
|
|
12
|
High-beam indicator light
|
Headlight switch
|
-
|
-
|
|
13
|
TNS indicator light
|
TNS relay
|
-
|
-
|
|
14
|
Brake system warning light
|
• Parking brake switch
• Brake fluid level sensor
|
-
|
-
|
|
DSC HU/CM
|
X
|
-
|
|
15
|
Air bag system warning light
|
SAS unit
|
-
|
-
|
|
16
|
Turn indicator light
|
Turn switch
|
-
|
-
|
|
17
|
DSC indicator light
|
DSC HU/CM
|
X
|
-
|
|
18
|
Oil level warning light
|
PCM
|
X
|
-
|
|
19
|
Cruise set indicator light
|
PCM
|
X
|
With cruise control system
|
|
20
|
Coolant level warning light
|
PCM
|
X
|
-
|
|
21
|
Selector indicator light
|
TCM
|
X
|
AT
|
|
22
|
AT warning light
|
TCM
|
X
|
AT
|
|
23
|
Cruise main indicator light
|
PCM
|
X
|
With cruise control system
|
|
24
|
MIL
|
PCM
|
X
|
-
|
|
25
|
Generator warning light
|
PCM
|
X
|
-
|
