LIGHTS-ON REMINDER WARNING ALARM CONSTRUCTION/OPERATION

id092200531700

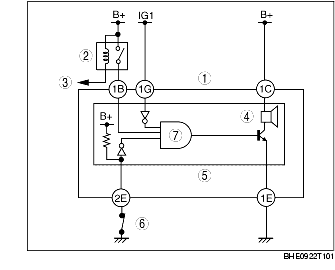

System Wiring Diagram


1	Instrument cluster
2	TNS relay
3	Light switch
4	Buzzer
5	Microcomputer
6	Door switch (driver's side)
7	AND

Operation

• The buzzer in the instrument cluster sounds continuously when all the following three conditions are met:

– The ignition switch is in the LOCK or ACC position.

– The headlight switch is in the TNS or headlight position.

– The driver-side door is open (driver-side door switch is on).

Note

• When the conditions for the lights-on reminder warning and the key reminder warning alarms are present at the same time, the key reminder warning alarm is given first priority.
