OIL LEVEL SWITCH INSPECTION

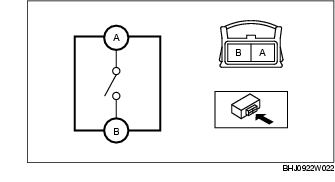

1. Disconnect the oil level switch connector.

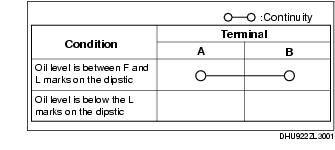

2. Verify the continuity between the oil level switch terminals.

• If the continuity is not as indicated in the tables, replace the oil level switch.
