COWL UPPER PLATE REMOVAL

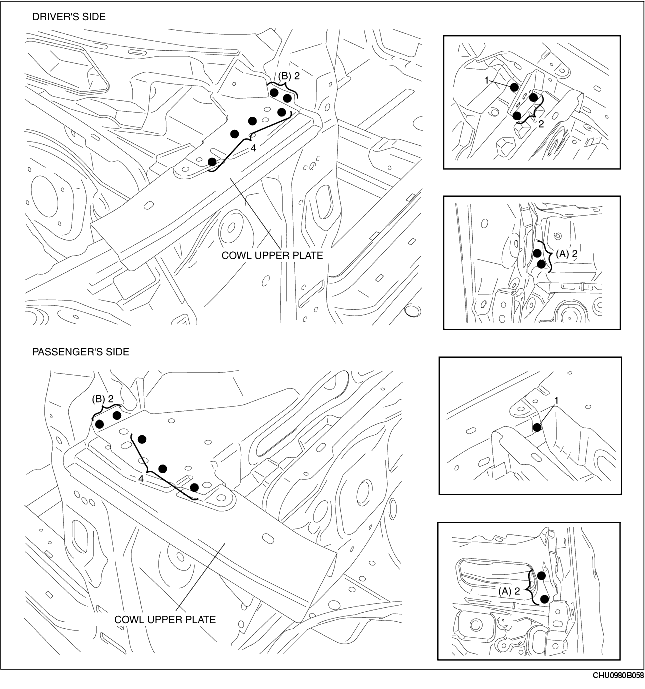

1. Drill the four weld locations indicated by (A), from the room side.

2. Remove the cowl upper plate.

Caution

• Be careful not to damage the windshield when drilling the location indicated by (B).
