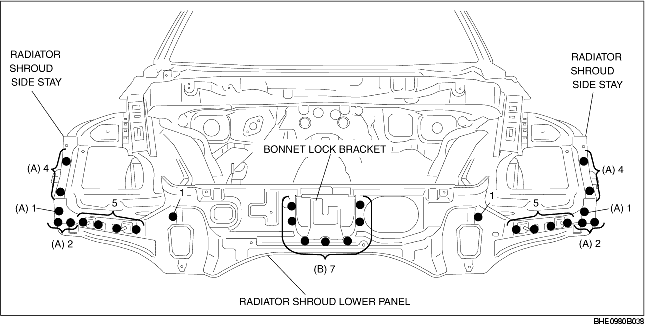

RADIATOR SHROUD LOWER PANEL REMOVAL

1. Remove the radiator shroud lower panel.

Note

• When removing the radiator shroud side stay and the bonnet lock bracket separately, drill the 14 weld locations indicated by (A) and the seven weld locations indicated by (B).
