CYLINDER BLOCK INSPECTION

id011000507200

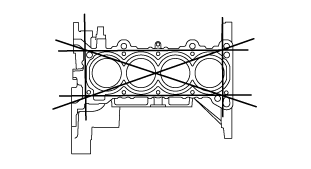

1. Measure the distortion of the cylinder block top surface in six directions as indicated in the figure.

• If it exceeds the maximum, replace the cylinder block.

belbze00000102

Maximum cylinder block distortion

0.10 mm {0.004 in}

2. Measure the cylinder bores in X and Y directions at 42 mm {1.65 in} below the top surface.

• If not within the specification, replace the cylinder block.

belbze00000103

Standard diameter limit

L8: 83.000—83.030 mm {3.2677—3.2689 in}

LF, L3: 87.500—87.530 mm {3.4449—3.4460 in}

L5: 89.000—89.030 mm {3.5040—3.5051 in}

Minimum / maximum bore diameter limit

L8: 82.940—83.090 mm {3.2653—3.2712 in}

LF, L3: 87.440—87.590 mm {3.4425—3.4484 in}

L5: 88.940—89.090 mm {3.5016—3.5074 in}
