VALVE GUIDE REPLACEMENT

BME011010280501

Valve Guide Removal

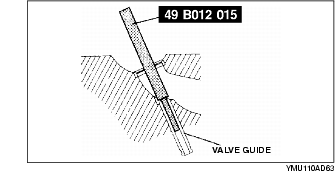

1. Remove the valve guide from the combustion chamber side using the SST.

Valve Guide Installation

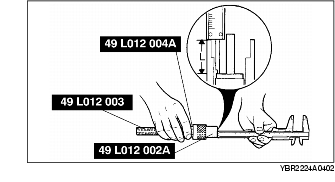

1. Assemble the SSTs so that depth L is as specified.

Depth L
IN: 13.4-14.2 mm {0.528-0.559 in}
EX: 13.4-14.2 mm {0.528-0.559 in}

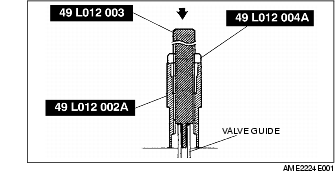

2. Tap the valve guide in from the side opposite the combustion chamber until the SSTs contact the cylinder head.

3. Verify that the valve guide projection height is within the specification.

Standard height
IN: 13.4-14.2 mm {0.528-0.559 in}
EX: 13.4-14.2 mm {0.528-0.559 in}
