CRANKSHAFT END PLAY INSPECTION

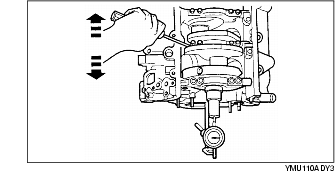

1. Measure the crankshaft end play.

• If not as specified, replace the thrust bearing and No.4 lower main bearing or crankshaft so that the specified end play is obtained.

0.110-0.232 mm {0.00434-0.00913 in}
