VALVE SPRING INSPECTION
BME011012125501

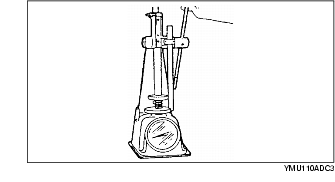

1. Apply pressing force to the pressure spring and inspect the spring height.
-
• If not as specified, replace the valve spring.
Pressing force
-
680 N {69.3 kgf, 152 lbf}
Standard height
-
30.19 mm {1.189 in}

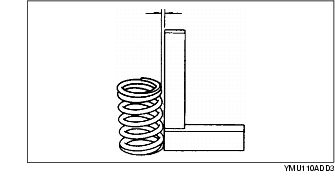

2. Measure the out-of-square of the valve spring.
-
• If not as specified, replace the valve spring.
Valve spring maximum out-of-square
-
1% (0.468 mm {0.00184 in})
