CHAIN SPROCKETS DISASSSEMBLY/INSTALLATION

Disassembly

Caution

• Clamp the sprocket in a soft-jawed vise.

1. Using the SST, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

2. Using the SST, remove the No. 17 stator support bearing, as necessary.

Assembly

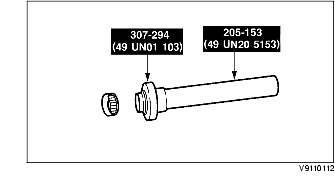

1. Position the No. 16 reverse/overdrive ring gear bearing on the SST.

Note

• Position the bearing with the part number facing toward the handle of the SST.

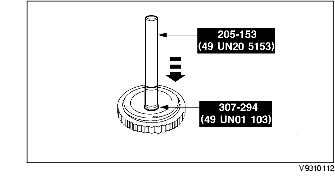

2. Using the SST, install the No. 16 reverse/overdrive ring gear bearing.

Note

• The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.

3. Position the No. 17 stator support bearing on the SSTs.

Note

• Position the bearing with the part number facing toward the handle of the special tool.

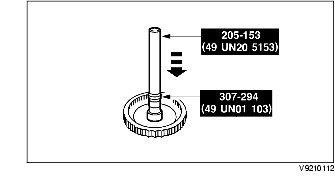

4. Using the SSTs, install the No. 17 stator support bearing into the stator support sprocket.

Note

• The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.
