FORWARD/COAST/DIRECT CLUTCH CYLINDER AND REVERSE CLUTCH DRUM REMOVAL


BUE051719500102

Removal

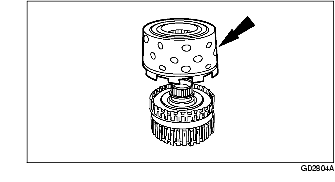

1. Remove the reverse clutch hub retaining ring.

Note
• Support the component of the forward/coast/direct clutch cylinder component and reverse clutch drum component on a block of wood so that the reverse clutch hub faces upward. This will ease the reverse clutch hub retaining ring removal.

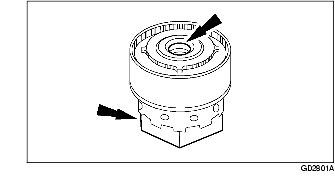

2. Remove the reverse clutch hub.

3. Remove the reverse clutch drum component.

4. Remove the direct clutch hub and shell from the forward/coast/direct clutch cylinder.

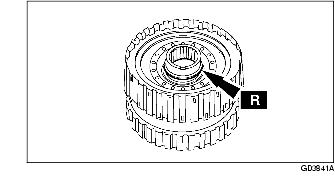

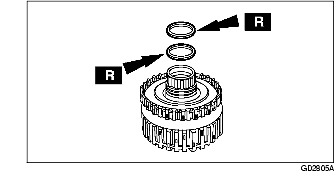

5. Remove and discard the two reverse clutch cylinder seals from the forward/coast/direct clutch cylinder component.

6. Remove the No. 2 direct clutch thrust washer from the forward/coast/direct clutch cylinder.

Note
• Observe the tab orientation of the No. 2 direct clutch thrust washer during disassembly for correct installation.

7. Remove and discard the forward/coast/direct clutch cylinder hub seal ring.
