FORWARD/COAST/DIRECT CLUTCH CYLINDER AND REVERSE CLUTCH DRUM INSTALLATION

Installation

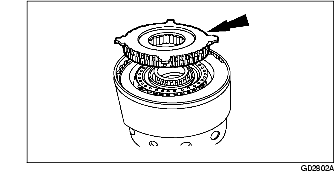

1. Install the No. 2 direct clutch thrust washer on the forward/coast/direct clutch cylinder with the tabs facing downward.

Caution

• The tabs on the No. 2 direct clutch thrust washer must be seated in the direct clutch support and spring.

2. Install the two reverse clutch cylinder seals.

3. Position the reverse clutch cylinder seals.

Note

• Make sure that the reverse clutch cylinder seals are overlapped correctly.

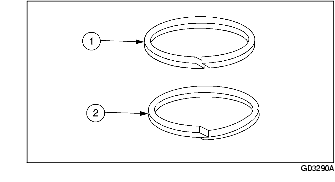

(1) Correct installation.

(2) Incorrect installation.

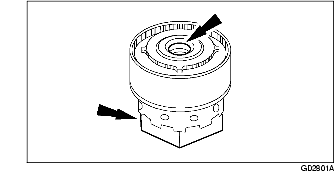

4. Support the forward/coast/direct clutch cylinder component on a block of wood so that the direct clutch faces upward.

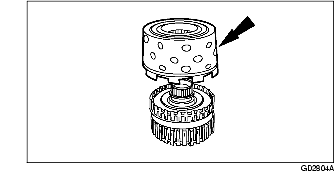

5. Install the direct clutch hub and shell on the forward/coast/direct clutch cylinder.

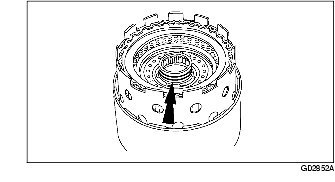

6. Install the reverse clutch drum component.

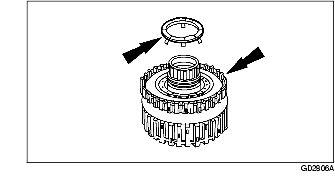

7. Install the reverse clutch hub.

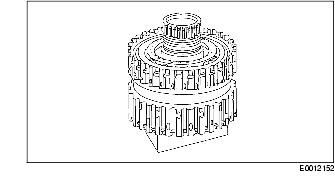

8. Support the reverse clutch drum on a block of wood while installing the reverse clutch hub retaining ring.

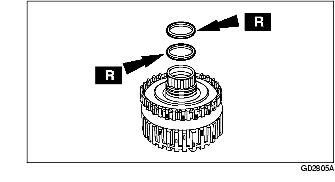

9. Install the forward/coast/direct clutch cylinder hub seal.

10. Leave the SST attached until the forward/coast/direct clutch cylinder is installed into the transaxle housing.
