BEARING COVER COMPONENT ASSEMBLY

Assembly Procedure

1. Apply ATF to the new O-ring and install it to the bearing cover.

O-ring inner diameter

85.1 mm {3.35 in}

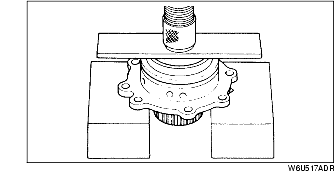

2. Press the new bearing race into the bearing cover.

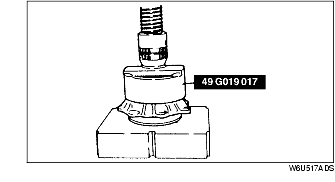

3. Press the new oil seal into the bearing cover using the SST.
