LOW AND REVERSE BRAKE PREINSPECTION
BUE051719500A09
Clutch Operation Inspection
-
Warning
-
• Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eye wear whenever using compressed air.
-
Caution
-
• Applying compressed air to the assembled clutch pack for longer than 3 seconds at a time will damage the seal. Do not apply compressed air for more than the aforementioned time when testing the system.

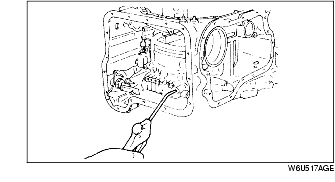

1. Inspect the clutch operation by applying compressed air as shown.
-
• If not as specified, replace parts as necessary.
-
Air pressure
-
390 kPa {4.0 kgf/cm2, 57 psi} max.
Clutch Clearance Inspection
1. Measure the clearance between the retaining plate and the snap ring.
-
• If not as specified, replace parts as necessary.
-
Clearance
-
1.5-1.8 mm {0.060-0.070 in}
